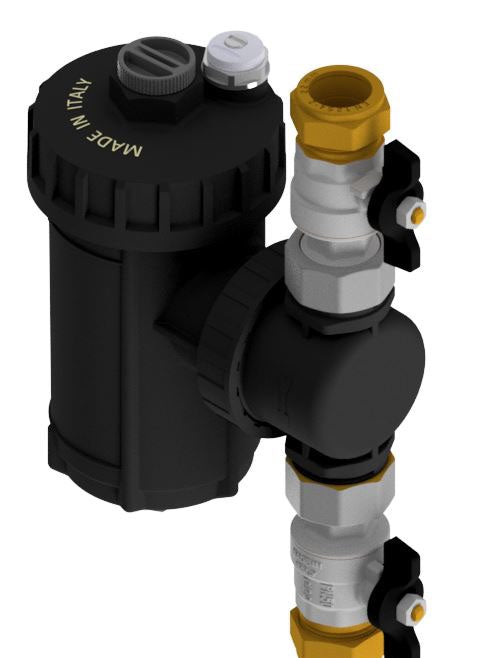

DosaFil® B2 Filter

The first & only filter on the market designed for SOLID chemical dosing and also acts as a multifunction magnetic filter.

Effective removal of

• Magnetite fouling
• Non-Magnetic fouling
• General installation debris

Acts as a dosing device to introduce

• DR1 Solid Inhibitor
• DR2 & DR3 Solid Cleaners
• DR4 Solid Biocide

The B2 filter features:

• 22mm compression nickel-plated brass connections
• 360° Mounting capability
• 11,000 gauss neodymium magnet
• Stainless steel fine mesh filter
• Temperature range 0-90°C
• Max operating pressure 4 bar

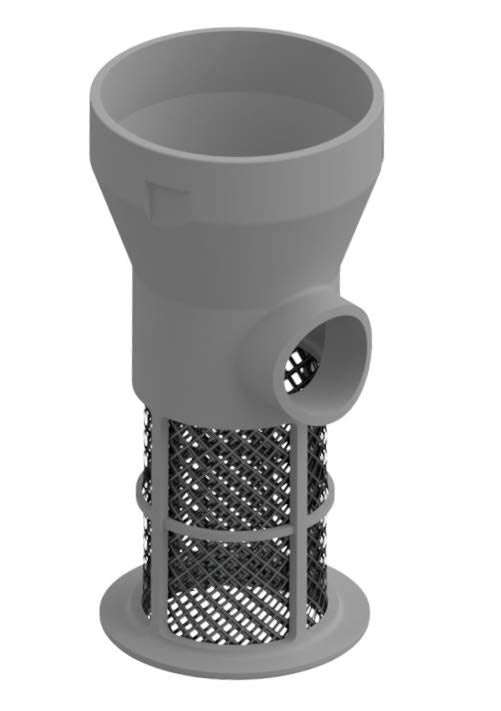

The fine mesh filter insert features

• Non-Magnetic debris captured in the filter
• Easy to remove and clean as part of the annual service
• All water entering the filter is forced through the stainless-steel mesh

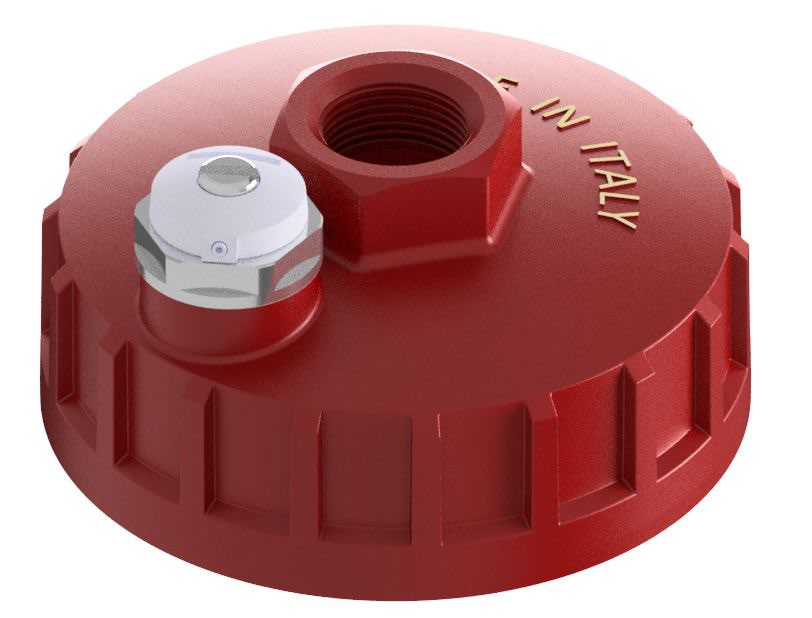

The seperately sold commissioning cap is specifically designed without a magnet for use during the solid chemical dosing process.  The cap is replaced with the standard magnetic cap once chemistry is dosed.  It contains an air bleed valve to commission the system.
